SPECIFICATIONS

Brand Name: AEM

Interchange Part Number: 50-1009

Item Weight: 1.2KG

Manufacturer Part Number: for AEM

OEM NO.: 50-1009

Origin: De(origin)

Other Part Number: 501009

Placement on Vehicle: Fuel Tank

Special Features: Universal Fit

Type: High Pressure Pump

Warranty: 3 Year

400LPH Metric Inline High Flow Fuel Pump

PRODUCT DESCRIPTION :

For AEM’s 400lph Metric High Flow, high pressure Inline Fuel Pump (PN 50-1009) is the perfect direct replacement upgrade for 044 pump users who want more fuel flow for their high performance vehicle!

The 400lph Metric High-Flow Inline Fuel Pump has an M18X1.5 female inlet and M12x1.5 male outlet. It utilizes the industry standard “044 Style” envelope. It is capable of supporting over 1,200 HP normally aspirated and a whopping 860 HP at 30 psi boost!* It flows 400lph (105 gph) at 40 PSI, 340 lph (90 gph) at 73 PSI, and 270 lph (71 gph) at 120 PSI. Complete flow curves from 35 to 120 PSI and current draw vs. fuel pressure charts are available on the Specs tab.

The 400lph Metric High Flow Fuel Pump is rated for use with ethanol-blended fuels, (E85/E90) and all types of gasoline, but pump life will be diminished if used with 100% ethanol fuels.

• Designed for high output naturally aspirated and forced induction EFI vehicles

• Popular “044 Style” physical configuration with metric fittings for direct replacement of 044 pumps!

• Maintains very high flow even at boosted fuel pressures; 340 lph @ 73 PSI (30 psi boost)

• Each pump individually tested to flow minimum of 400lph (105gph) @ 40 PSI

• Compatible with Flex Fuel (E85/E90) and all types of gasoline (100% Alcohol fuels may diminish fuel pump life)

• Kit includes fuel pump, check valve fitting, terminal nuts & boots, instructions

*Power rating given using gasoline and assuming a base fuel pressure of 43 PSI, 13.5v at the pump, 6.2 lbs/gal with a BSFC of 0.65. Boost fuel pressure is assumed to be the base pressure of 43 PSI + boost pressure. Flow capability for horsepower support is ultimately dependent on fuel hose diameter, and system electrical voltage and amperage capabilities.

SPECIFICATIONS :

TECHNICAL SPECS:

Weight: 35.8oz (1015 grams)

Outside Diameter: 60mm OD

External Materials: Black plated steel with laser etching

Inlet Fitting: M18X1.5 female

Outlet Fitting: M12x1.5 male

PRV Activation: 150 PSI

Impeller Design: Roller vane with ceramic end plate

VOLTAGE SPECS:

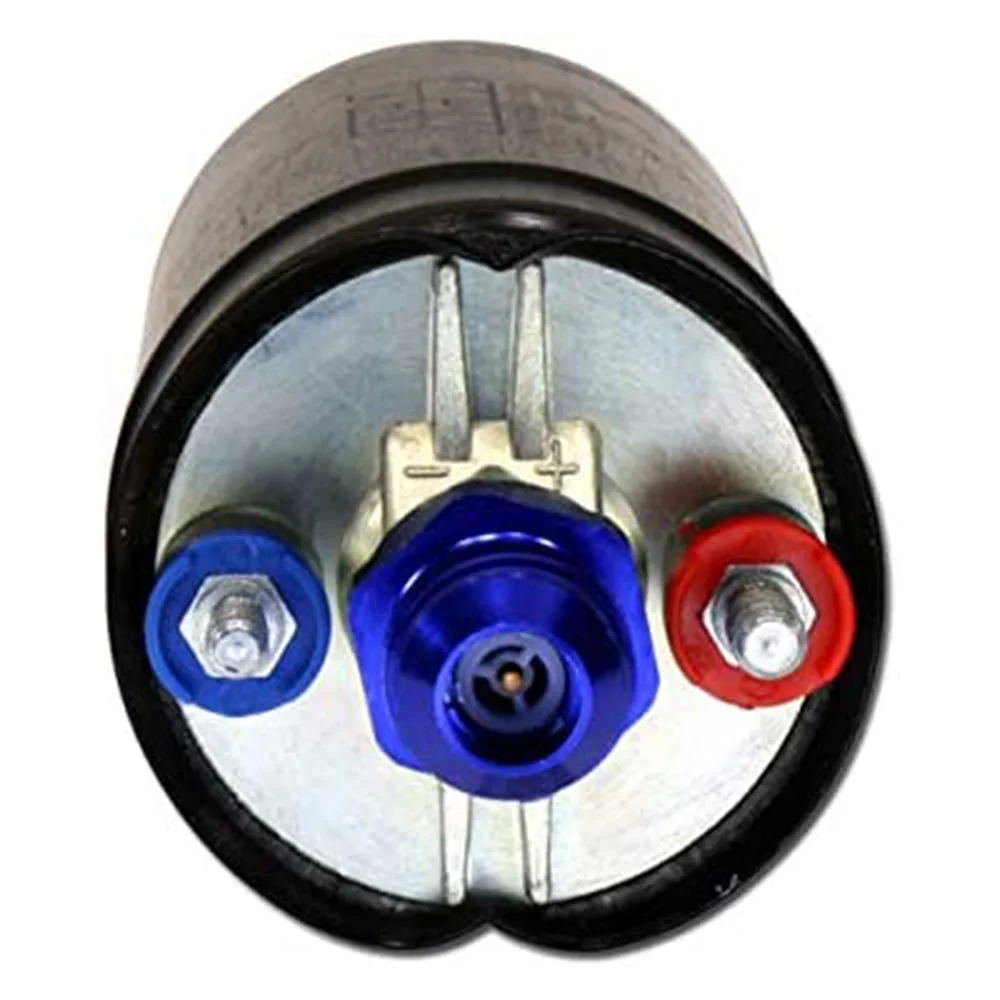

Connector Terminal: 6mm stud positive, 5mm stud negative

Min Voltage Input: 10 volts

Max Voltage Input: 18 volts

Current Draw (40 psi): 9.73 amps no check valve, 10.68 amps with check valve (13.5v)

Current Draw (120 psi): 16.07 amps no check valve, 17.13 amps with check valve (13.5v)

Fuse: 25 amps (13.5v)

* Power rating given at 43 PSI, 13.5v at the pump terminal with a BSFC of .5. Flow capability for horsepower support is ultimately dependent on fuel hose diameter, and system electrical voltage and amperage capabilities.

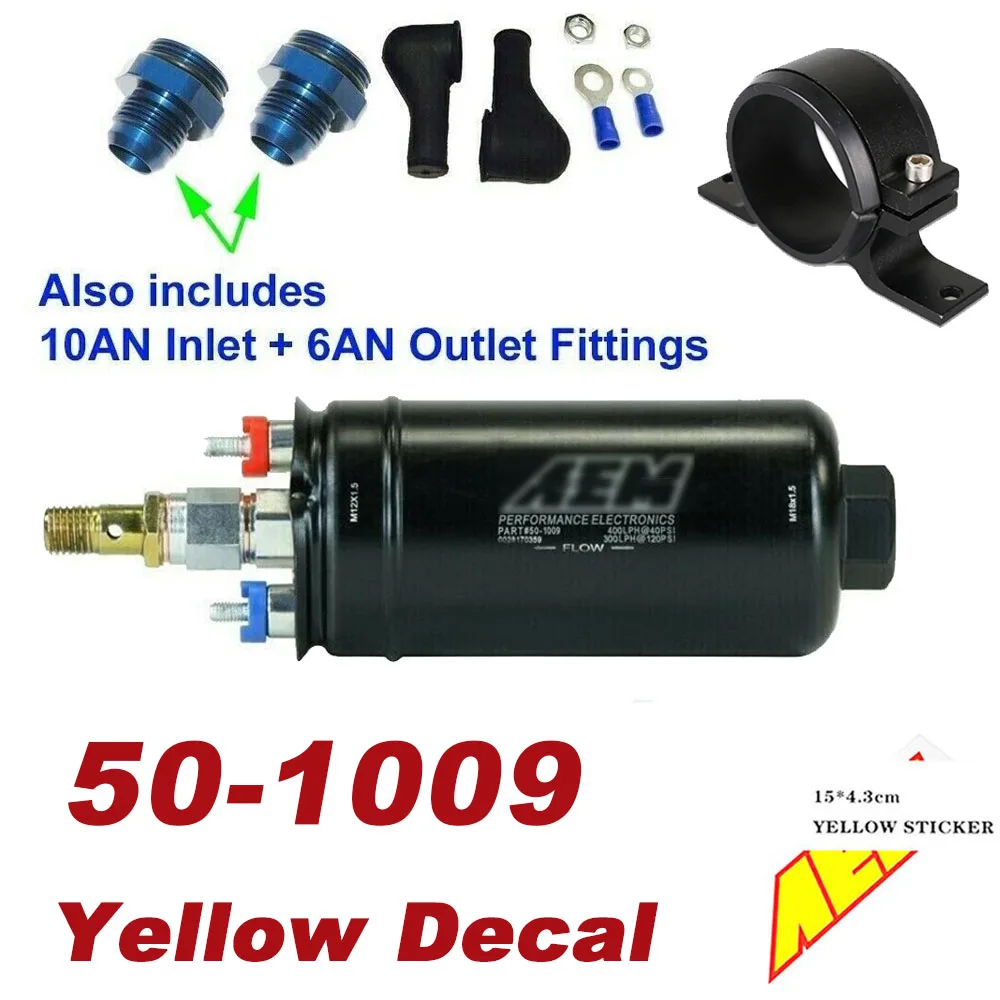

Includes:

400LPH Fuel pump

-10AN Inlet + 6AN Outlet Fittings

Terminal nuts & boots

Instructions

60MM Fuel Filter Bracket

Yellow Sticker or Black Sticker
